Today I finished deburring the remaining brackets for the ailerons. I also dug out the aileron gap fairings and flap braces and clecoed them to the wings.
May 2 , 2008
Drilling aileron brackets and fairings to the wings - 2.0 hrs.

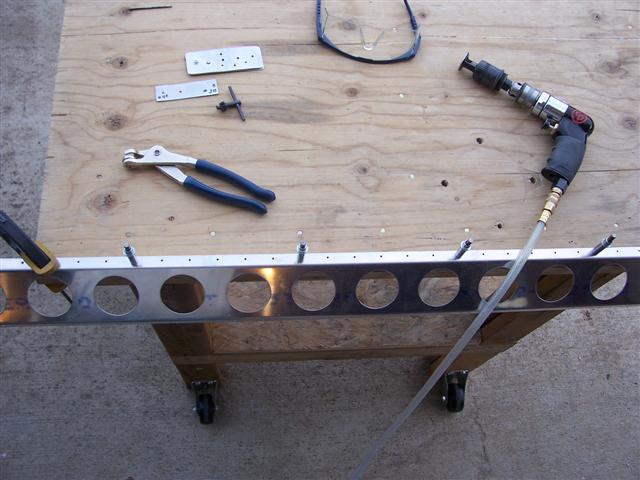

Today I drilled the aileron brackets to the wings. Next, I drilled the aileron gap fairings and flap braces to the wings and took everything apart.
May 3 , 2008
Deburring aileron brackets and fairings - 2.5 hrs

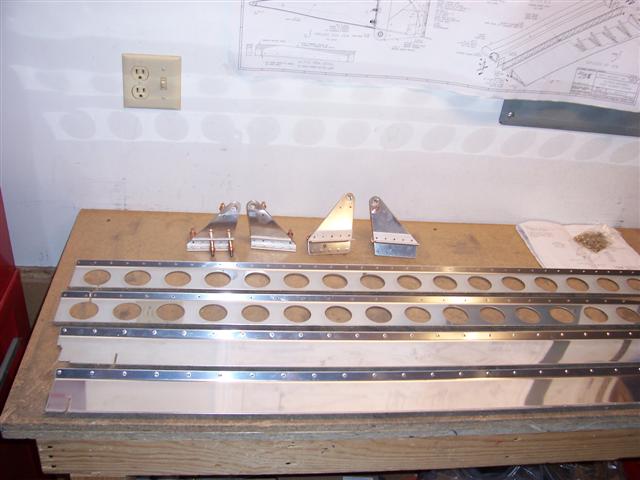

Tonight I was able to deburr the aileron gap fairings and flap braces. Then I dimpled the aileron gap fairings.
May 4 , 2008
Deburring aileron brackets and fairings - 3.0 hrs
Tonight I finished all the deburring on all these parts. The flap braces need countersinking rather than dimpling, because they are sandwiched in between the dimpled skin and the flat flap hinge brackets. So I set up the countersink tool and countersunk the flap braces. Then I cleaned all the parts in preparation for priming.
.jpg)
.jpg)
