Wings

Tonight I finished up the work on the pitot tube.

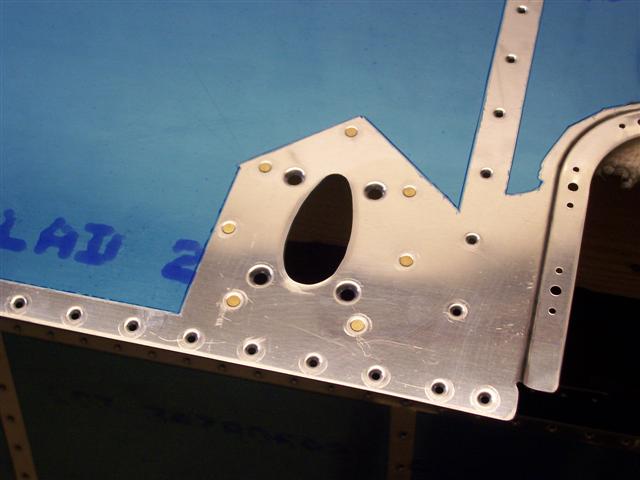

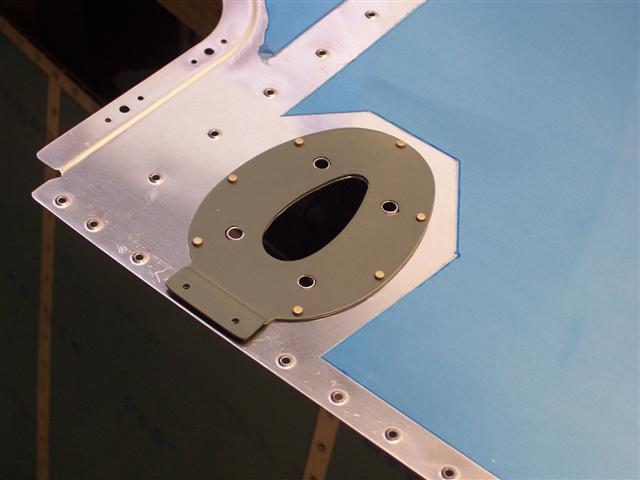

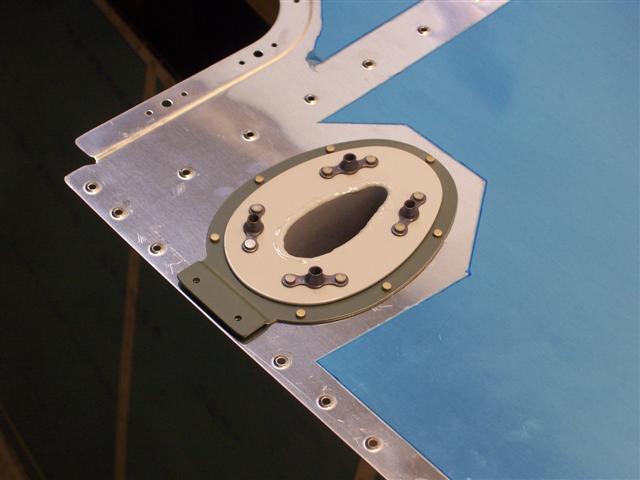

Here's the stiffener plate, all riveted in place on the skin. Below, how it looks on the outside. I'm ready to bolt on the mast.

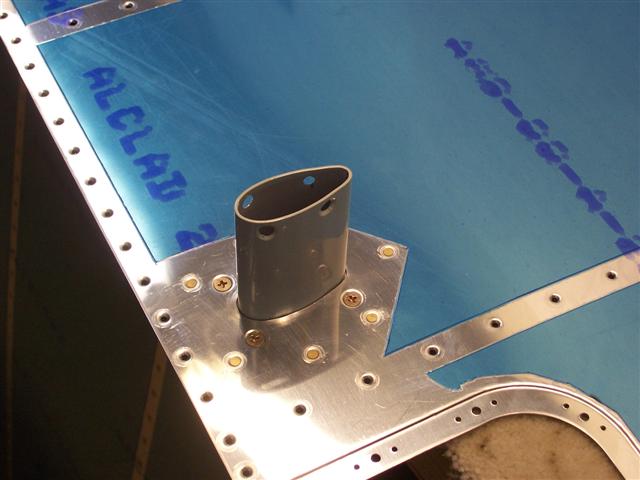

Above, the mast dropped into place. Below, how it looks on the outside, all bolted together. It's now ready for the pitot tube.

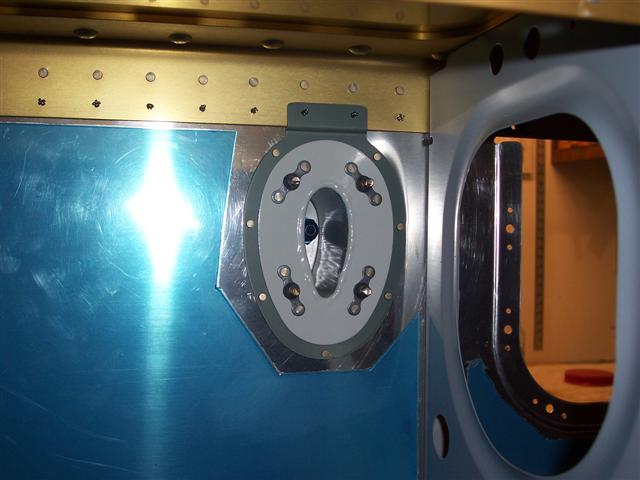

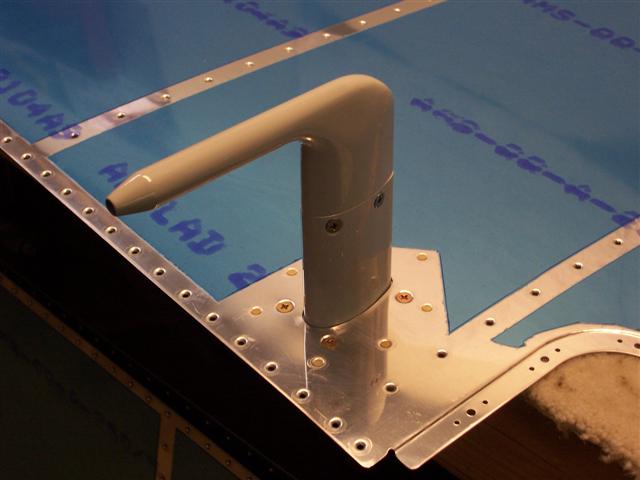

Doesn't this look great? Wow! Below, how it looks from the inside, all put together.

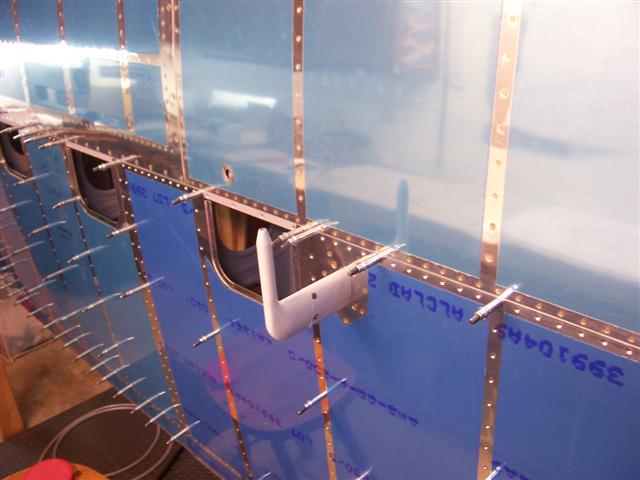

And finally, here's how it will look on the wing. All done! Now, finally, I'm ready to take this all off and rivet the top skins on.
